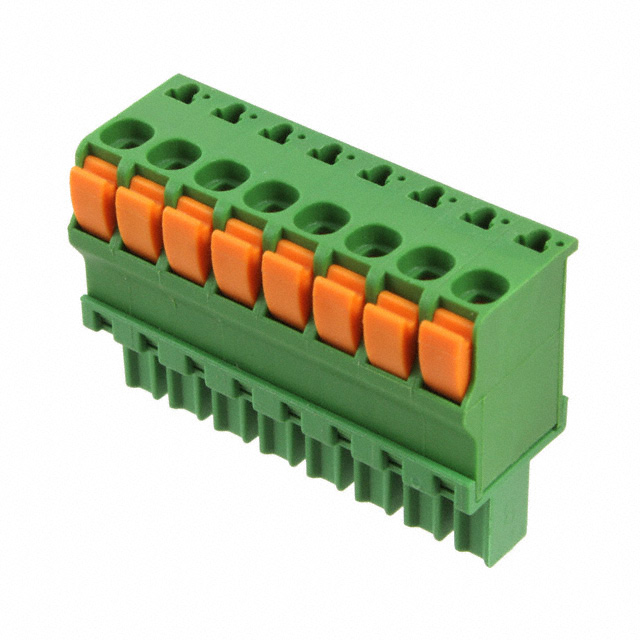

Image is for reference only , See Product Specifications
3040326
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 3040326 |
| Description: | TERM BLOCK PLUG 8POS STR |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug, Female Sockets |
| Color | Gray |
| Pitch | - |
| Series | CLIPLINE COMBI SP |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 20A |
| Voltage - UL | 300V |
| Current - IEC | 24A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 500V |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | - |
| Number of Levels | 1 |
| Insulation Height | 1.535" (39.00mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | 10mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Polyamide (PA), Nylon |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Contact Mating Finish | - |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 1 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $11.38 | $11.15 | $10.93 |
