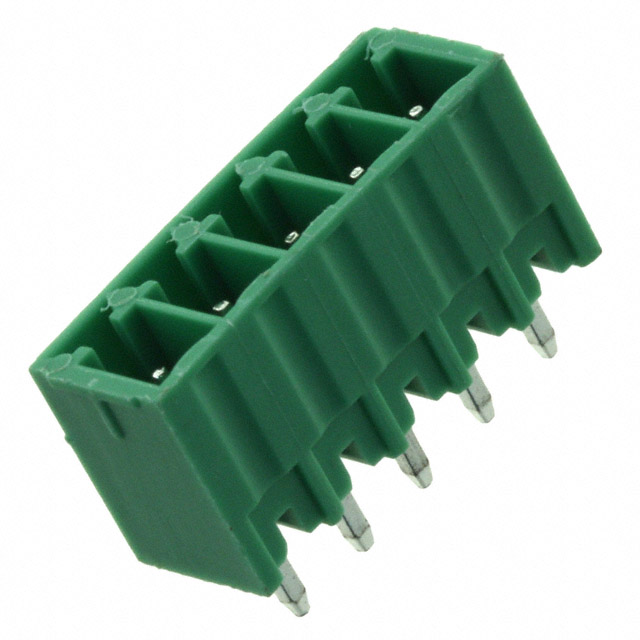

Image is for reference only , See Product Specifications
1984044
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 1984044 |
| Description: | TERM BLOCK PLUG 5POS 3.5MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug for Unshrouded Header |
| Color | Green |
| Pitch | 0.138" (3.50mm) |
| Series | COMBICON PT |
| Features | - |
| Packaging | Bulk |
| Screw Size | M2 |
| Part Status | Active |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Current - IEC | 8A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 400V |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Plug Wire Entry | 90° and 180° |
| Contact Material | - |
| Number of Levels | 1 |
| Insulation Height | 0.437" (11.10mm) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Wire Strip Length | 5mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 16-26 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 4226 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.12 | $1.10 | $1.08 |
