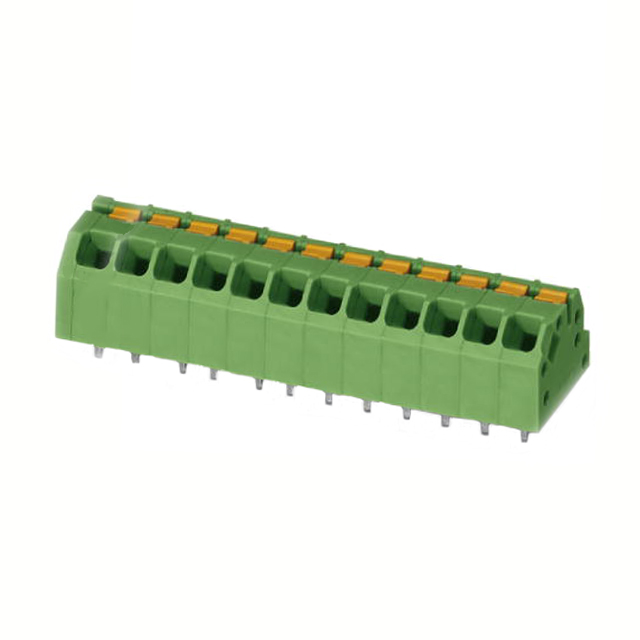

Image is for reference only , See Product Specifications
1864532
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 1864532 |
| Description: | TERM BLOCK 12POS 45DEG 5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON SPTAF LL |
| Current | 8A |
| Voltage | 300V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 16-24 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Mating Orientation | 45° (135°) Angle with Board |
| Dielectric Material | Polyamide (PA), Nylon |
| Positions Per Level | 12 |
| Operating Temperature | - |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | - |
In Stock 43 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.26 | $5.15 | $5.05 |
