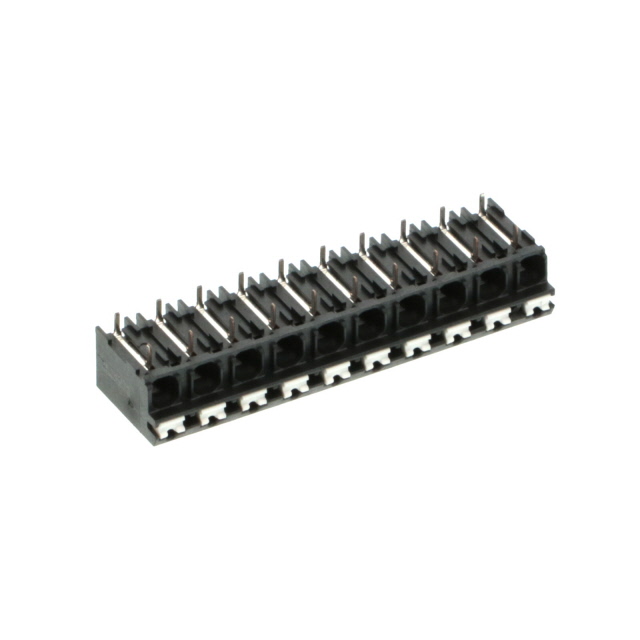

Image is for reference only , See Product Specifications
1823955
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 1823955 |
| Description: | TERM BLK 12P SIDE ENTRY 5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON SPT-THR |
| Current | 10A |
| Voltage | 300V |
| Features | - |
| Packaging | Cut Tape (CT) |
| Wire Gauge | 16-24 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Positions Per Level | 12 |
| Operating Temperature | - |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | Tin Plated |
In Stock 244 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $8.79 | $8.61 | $8.44 |
Request Quote
