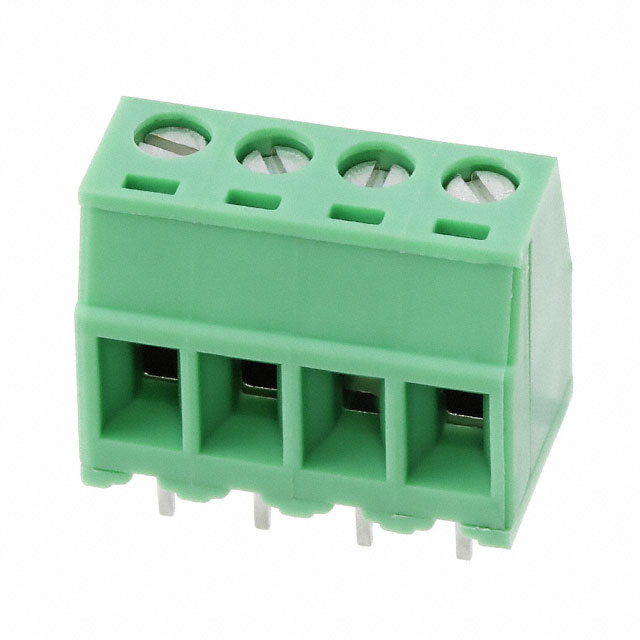

Image is for reference only , See Product Specifications
1790539
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 1790539 |
| Description: | TERM BLK 4POS TOP ENT 5.08MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | COMBICON FFKDSA |
| Current | 10A |
| Voltage | 300V |
| Features | Interlocking (Side), Lever Actuated |
| Packaging | Bulk |
| Wire Gauge | 16-22 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Mating Orientation | Vertical with Board |
| Dielectric Material | Polyamide (PA), Nylon |
| Positions Per Level | 4 |
| Operating Temperature | - |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | - |
In Stock 59 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.31 | $4.22 | $4.14 |
