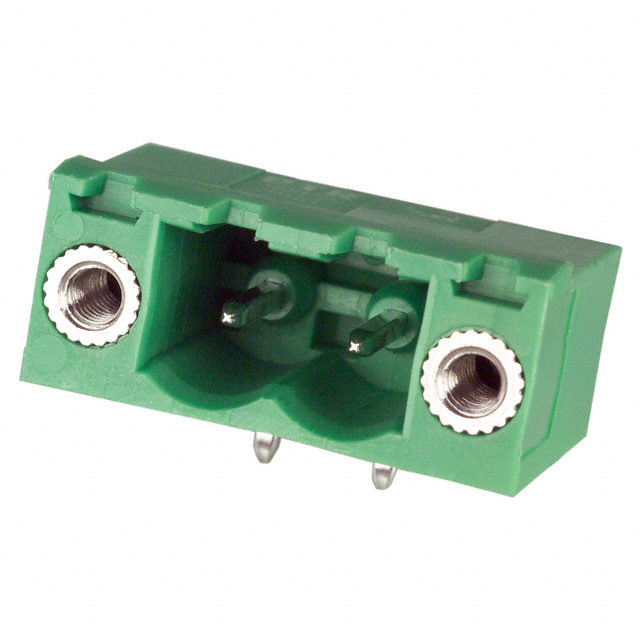

Image is for reference only , See Product Specifications
1720686
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | 1720686 |
| Description: | TERM BLOCK HDR 2POS 90DEG 7.62MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Green |
| Pitch | 0.300" (7.62mm) |
| Series | COMBICON PC |
| Features | Latch Lock |
| Packaging | Bulk |
| Screw Size | - |
| Part Status | Active |
| Current - UL | 41A |
| Voltage - UL | 300V |
| Current - IEC | 41A |
| Mounting Type | Through Hole |
| Voltage - IEC | 1kV |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | - |
| Number of Levels | 1 |
| Insulation Height | 0.533" (13.54mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | 90°, Right Angle, Under Board |
| Ingress Protection | - |
| Contact Tail Length | 0.165" (4.19mm) |
| Dielectric Material | Polyamide (PA), Nylon |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 15 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.07 | $3.01 | $2.95 |
