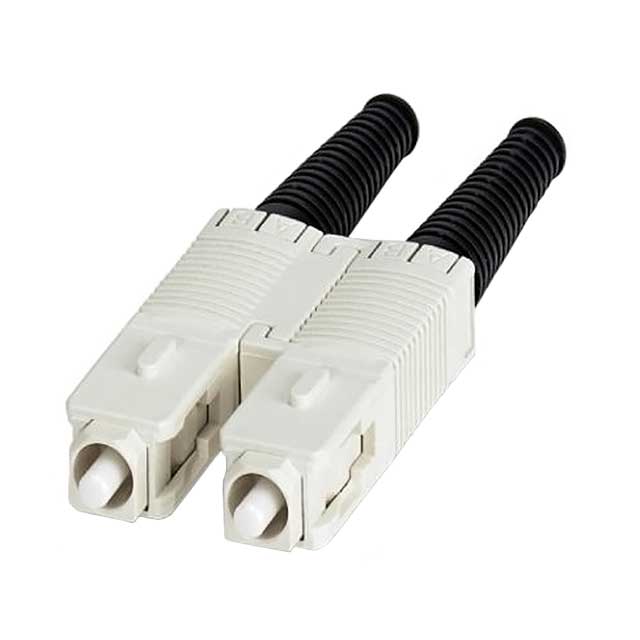

Image is for reference only , See Product Specifications
1657083
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Fiber Optic Connectors |
| Data Sheet: | 1657083 |
| Description: | CONN FIBER OPTIC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Fiber Optic Connectors |
| Mode | Multimode |
| Series | PLUSCON VS |
| Features | Strain Relief |
| Boot Color | Gray |
| Reflection | - |
| Part Status | Active |
| Body Material | - |
| Housing Color | Gray |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Cable Diameter | 8.5mm |
| Connector Type | Plug |
| Fastening Type | Latch Lock/Eject Hooks |
| Simplex/Duplex | Duplex |
| Connector Style | SCRJ |
| Ferrule Material | Zirconia |
| Attenuation - Typ | -0.5dB |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Dielectric Material | Polyamide (PA), Nylon |
| Fiber Core Diameter | 50µm/62.5µm |
| Operating Temperature | -20°C ~ 70°C |
| Fiber Cladding Diameter | 125µm |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $113.07 | $110.81 | $108.59 |
