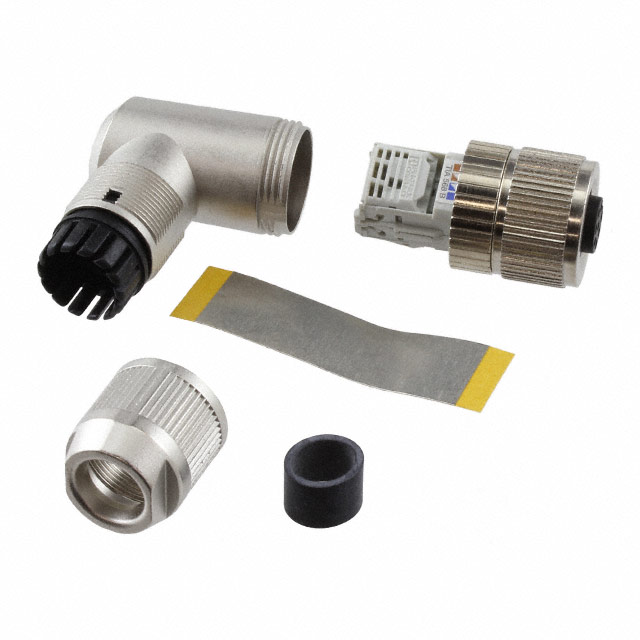

Image is for reference only , See Product Specifications
1513347
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | 1513347 |
| Description: | CONN RCPT FMALE 8POS GOLD SCREW |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Circular Connectors |
| Color | Black, Silver |
| Series | SACC |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | - |
| Orientation | A |
| Part Status | Active |
| Termination | Screw |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.236" ~ 0.315" (6.00mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 30VAC/DC |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Copper Zinc |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Mating | - |
In Stock 43 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $48.04 | $47.08 | $46.14 |
