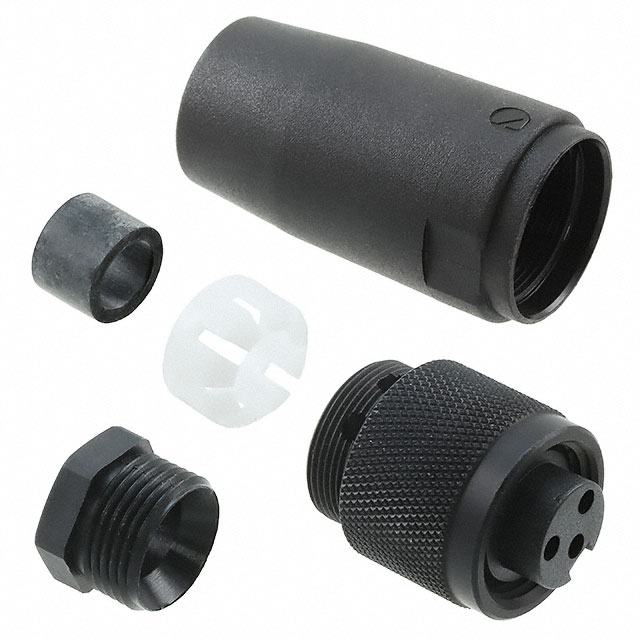

Image is for reference only , See Product Specifications
1424668
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | 1424668 |
| Description: | CONN 4POS SKT STRAIGHT M12 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Circular Connectors |
| Color | Silver |
| Series | SACC |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | A |
| Part Status | Active |
| Termination | Spring-Cage |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 48VAC, 60VDC |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size, MIL | - |
| Contact Material | Copper Tin |
| Mounting Feature | - |
| Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Zinc Die Cast, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
In Stock 1 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $23.79 | $23.31 | $22.85 |
