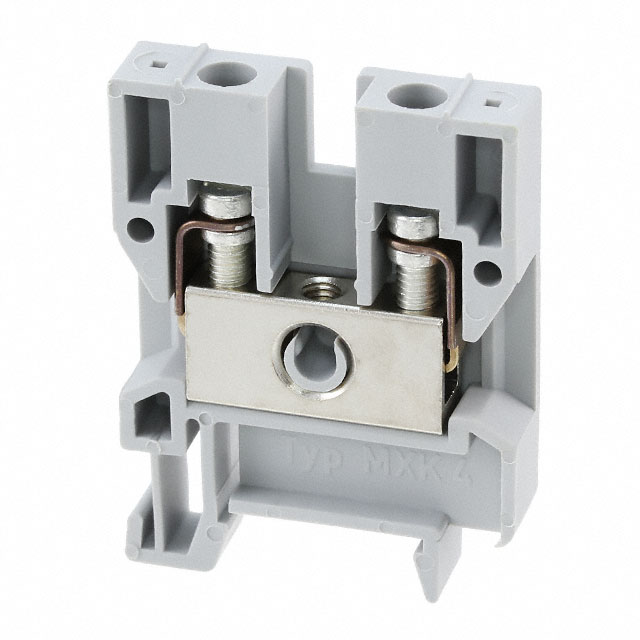

Image is for reference only , See Product Specifications
1418073
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 1418073 |
| Description: | CONN TERM BLK FEED THRU 10-26AWG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Feed Through |
| Color | Gray |
| Series | CLIPLINE MBK |
| Features | - |
| Fuse Type | - |
| Part Status | Active |
| Current - UL | 5A |
| Voltage - UL | 300V |
| Current - IEC | 16A |
| Voltage - IEC | 500V |
| Disconnect Type | - |
| Number of Levels | 1 |
| Stripping Length | 8mm |
| Terminal - Width | 6.2mm |
| Termination Style | Screw, Tab |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon, Glass Filled |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Material Flammability Rating | UL94 HB |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $3.52 | $3.45 | $3.38 |
