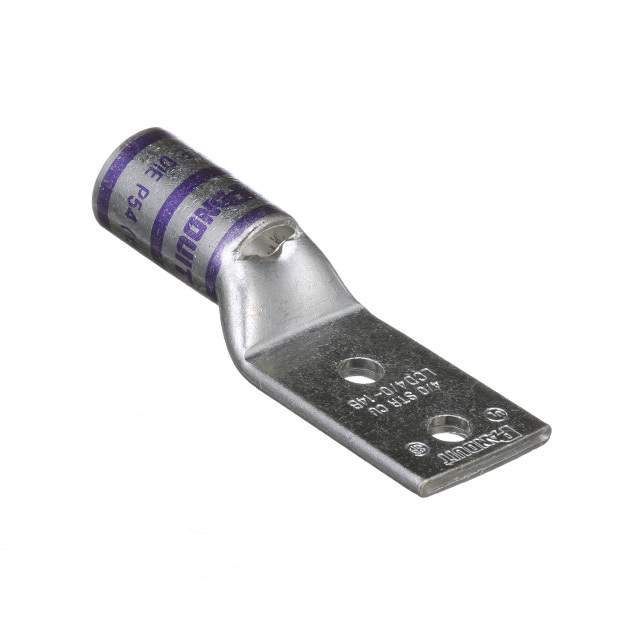

Image is for reference only , See Product Specifications
LCDX1/0-56BH-X
| Manufacturers: | Panduit Corp |
|---|---|
| Product Category: | Terminals - Rectangular Connectors |
| Data Sheet: | LCDX1/0-56BH-X |
| Description: | CONN TERM RECT TONG 1/0AWG #5/16 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panduit Corp |
| Product Category | Terminals - Rectangular Connectors |
| Color | Pink |
| Series | Pan-Lug® |
| Features | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Wire Gauge | 1/0 AWG |
| Part Status | Active |
| Termination | Crimp, Barrel |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Stud/Tab Size | 5/16 Stud |
| Tab Thickness | 0.130" (3.30mm) |
| Terminal Type | Rectangular Tongue |
| Contact Finish | Electro-Tin |
| Terminal Style | Two Stud Holes |
| Contact Material | Copper |
| Length - Overall | - |
| Diameter - Ring ID | 0.340" (8.64mm) |
| Width - Outer Edges | 0.850" (21.59mm) |
| Diameter - Barrel ID | 0.450" (11.43mm) |
| Diameter - Barrel OD | 0.580" (14.73mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $11.28 | $11.05 | $10.83 |
