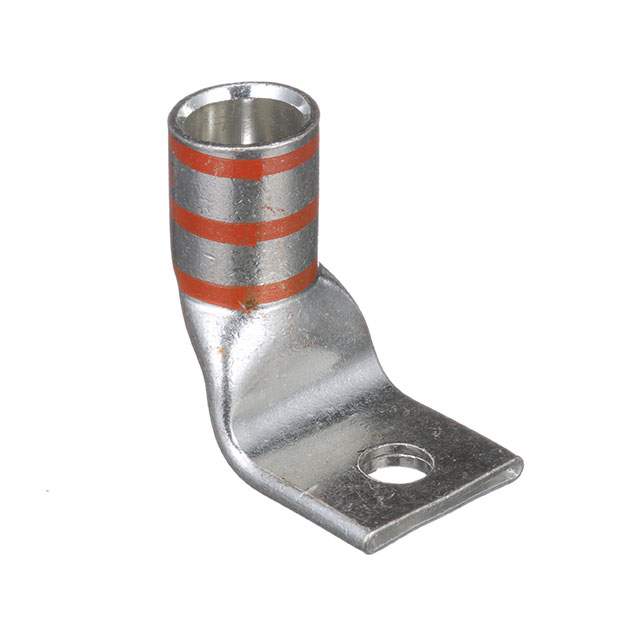

Image is for reference only , See Product Specifications
LCCX2-38DF-E
| Manufacturers: | Panduit Corp |
|---|---|
| Product Category: | Terminals - Rectangular Connectors |
| Data Sheet: | LCCX2-38DF-E |
| Description: | CONN TERM RECT TONG 2 AWG #3/8 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panduit Corp |
| Product Category | Terminals - Rectangular Connectors |
| Color | Brown |
| Series | Pan-Lug® |
| Features | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Wire Gauge | 2 AWG |
| Part Status | Active |
| Termination | Crimp, Barrel |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Stud/Tab Size | 3/8 Stud |
| Tab Thickness | 0.110" (2.79mm) |
| Terminal Type | Rectangular Tongue |
| Contact Finish | Electro-Tin |
| Terminal Style | Two Stud Holes |
| Contact Material | Copper |
| Length - Overall | - |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Width - Outer Edges | 0.700" (17.78mm) |
| Diameter - Barrel ID | 0.360" (9.14mm) |
| Diameter - Barrel OD | 0.470" (11.94mm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $11.63 | $11.40 | $11.17 |
