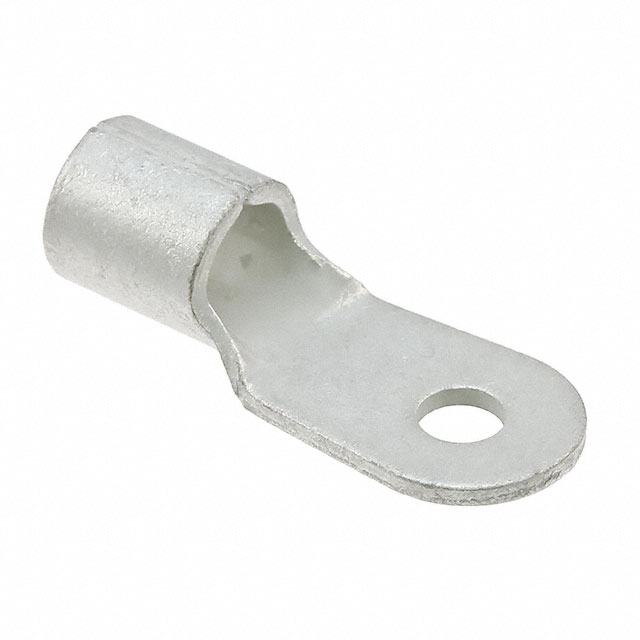

Image is for reference only , See Product Specifications
LAB2/0-12-5
| Manufacturers: | Panduit Corp |
|---|---|
| Product Category: | Terminals - Rectangular Connectors |
| Data Sheet: | LAB2/0-12-5 |
| Description: | CONN TERM RECT TONG 2/0 AWG #1/2 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panduit Corp |
| Product Category | Terminals - Rectangular Connectors |
| Color | - |
| Series | LAB |
| Features | Gel Filled |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Wire Gauge | 2/0 AWG |
| Part Status | Active |
| Termination | Crimp, Barrel |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 1/2 Stud |
| Tab Thickness | 0.250" (6.35mm) |
| Terminal Type | Rectangular Tongue |
| Contact Finish | Tin |
| Terminal Style | Two Stud Holes |
| Contact Material | Aluminum |
| Length - Overall | 5.550" (140.97mm) |
| Diameter - Ring ID | 0.540" (13.72mm) |
| Width - Outer Edges | 0.940" (23.88mm) |
| Diameter - Barrel ID | 0.439" (11.15mm) |
| Diameter - Barrel OD | 0.687" (17.45mm) |
In Stock 30 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $16.58 | $16.25 | $15.92 |
