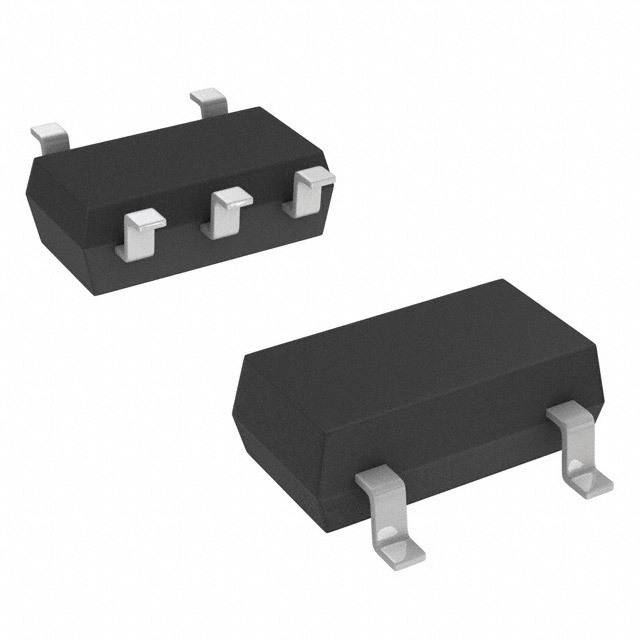

Image is for reference only , See Product Specifications
XN0421400L
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Data Sheet: | XN0421400L |
| Description: | TRANS PREBIAS DUAL NPN MINI6 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Series | - |
| Packaging | Digi-Reel® |
| Part Status | Obsolete |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Resistor - Base (R1) | 10kOhms |
| Frequency - Transition | 150MHz |
| Supplier Device Package | MINI6-G1 |
| Resistor - Emitter Base (R2) | 47kOhms |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector (Ic) (Max) | 100mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
