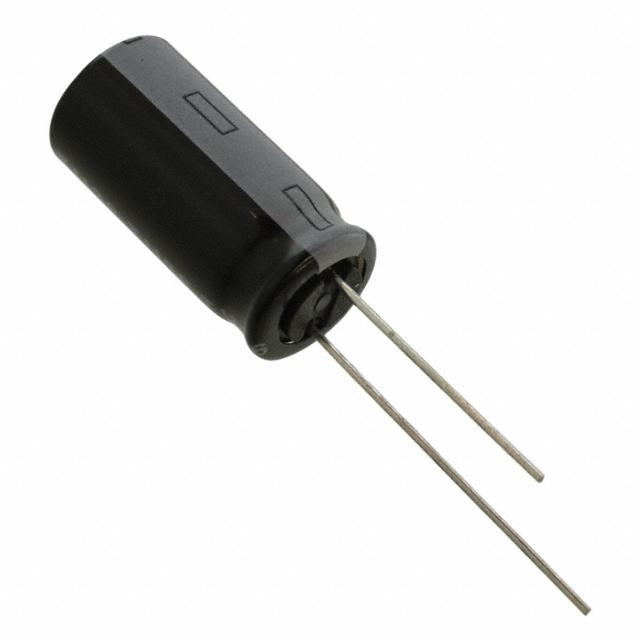

Image is for reference only , See Product Specifications
EEV-FK1K101Q
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEV-FK1K101Q |
| Description: | CAP ALUM 100UF 20% 80V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | FK |
| Ratings | AEC-Q200 |
| Impedance | 320 mOhms |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 80V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Ripple Current @ Low Frequency | 375mA @ 120Hz |
| Ripple Current @ High Frequency | 500mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 26032 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
