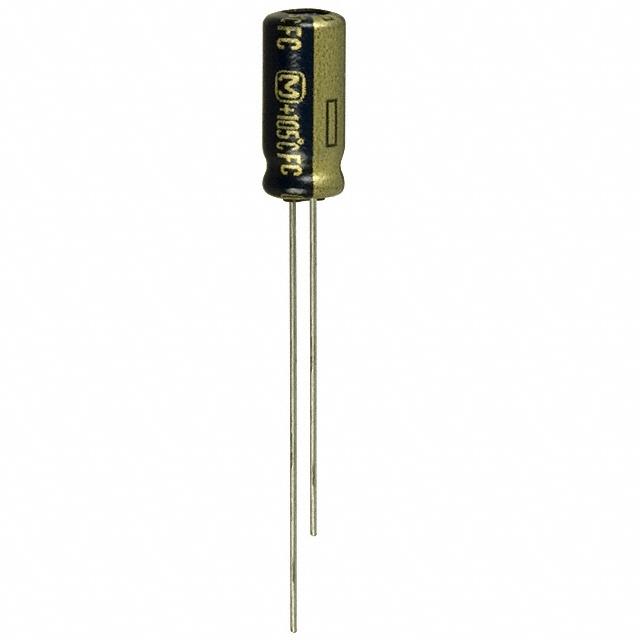

Image is for reference only , See Product Specifications
EEU-TA1C471SB
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEU-TA1C471SB |
| Description: | CAP ALUM 470UF 20% 16V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TA |
| Ratings | - |
| Impedance | 105 mOhms |
| Packaging | Tape & Box (TB) |
| Tolerance | ±20% |
| Capacitance | 470µF |
| Part Status | Obsolete |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 708.8mA @ 120Hz |
| ESR (Equivalent Series Resistance) | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
