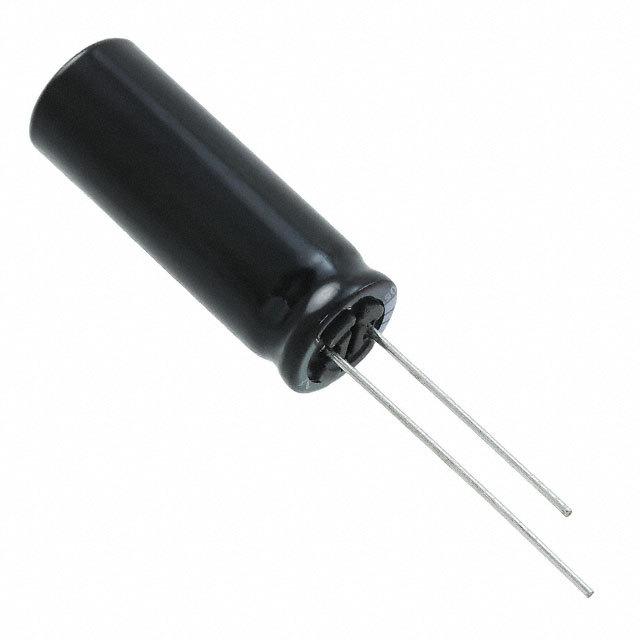

Image is for reference only , See Product Specifications
EEU-FK1V561S
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEU-FK1V561S |
| Description: | AL LYTIC, RADIAL, 35VDC, 560UF |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | FK |
| Ratings | AEC-Q200 |
| Impedance | 48 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 560µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 35V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.05A @ 120Hz |
| Ripple Current @ High Frequency | 1.4A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 2000 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.74 | $1.71 | $1.67 |
