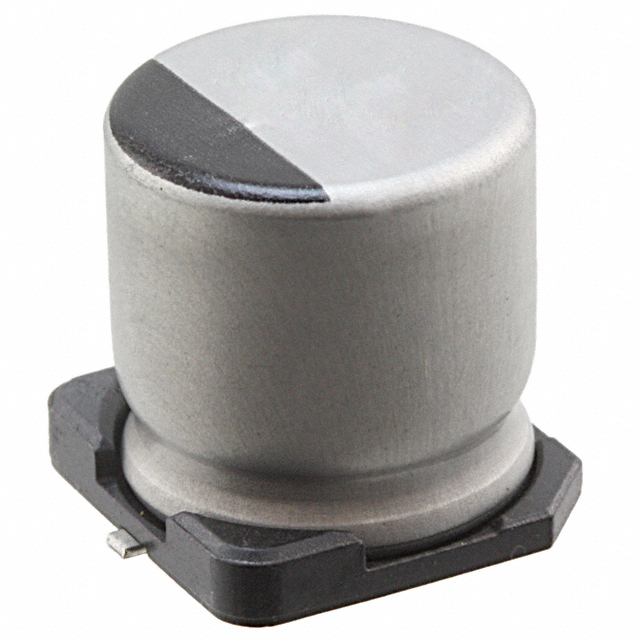

Image is for reference only , See Product Specifications
EEU-FC1H180
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEU-FC1H180 |
| Description: | CAP ALUM 18UF 20% 50V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | FC |
| Ratings | AEC-Q200 |
| Impedance | 1.3 Ohms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 18µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | 0.079" (2.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 100.8mA @ 120Hz |
| Ripple Current @ High Frequency | 155mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.31 | $0.30 | $0.30 |
