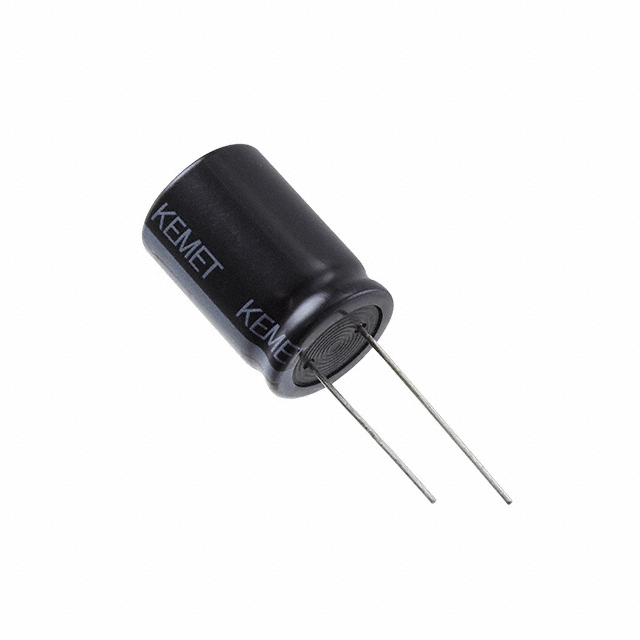

Image is for reference only , See Product Specifications
EEE-TP1E332V
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEE-TP1E332V |
| Description: | FIXED ALUMINUM ELECTROLYTIC CAPA |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TP |
| Ratings | AEC-Q200 |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 3300µF |
| Part Status | Active |
| Applications | Automotive, High Temperature Reflow |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Ripple Current @ Low Frequency | 2.4375A @ 120Hz |
| Ripple Current @ High Frequency | 3.25A @ 100kHz |
| ESR (Equivalent Series Resistance) | 32mOhm @ 100kHz |
In Stock 300 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
