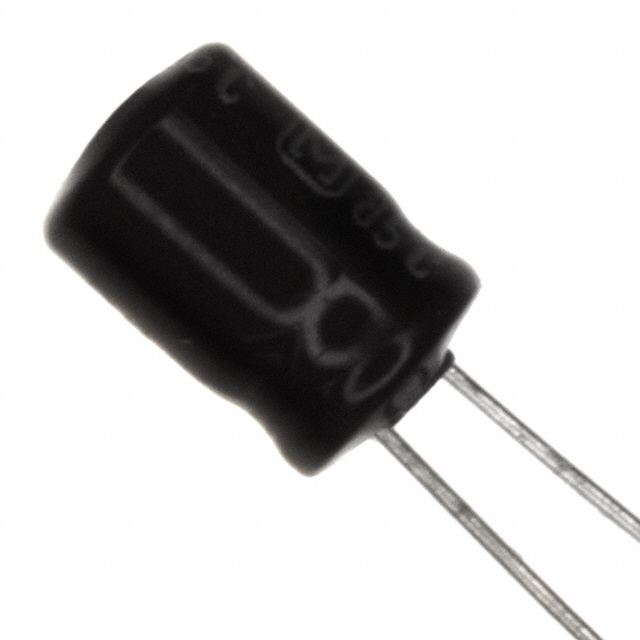

Image is for reference only , See Product Specifications
EEE-TG1H330UP
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEE-TG1H330UP |
| Description: | CAP ALUM 33UF 20% 50V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TG |
| Ratings | AEC-Q200 |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ Low Frequency | 52mA @ 120Hz |
| Ripple Current @ High Frequency | 80mA @ 100kHz |
| ESR (Equivalent Series Resistance) | 1.6Ohm @ 100kHz |
In Stock 23119 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.82 | $0.80 | $0.79 |
