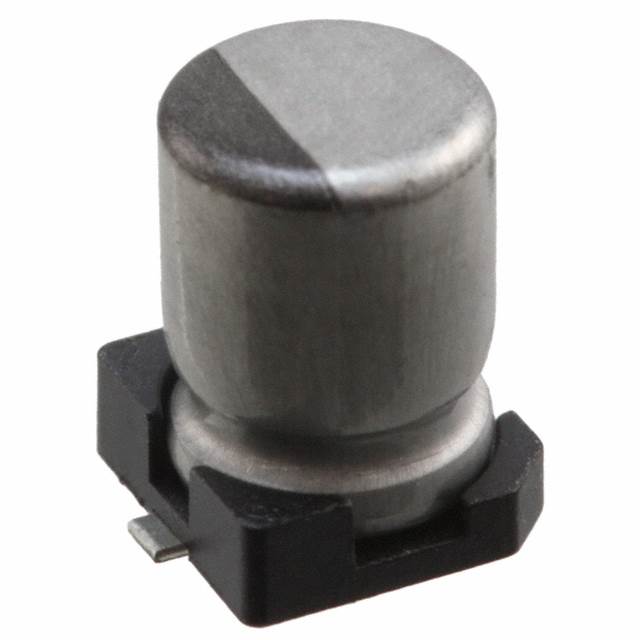

Image is for reference only , See Product Specifications
EEE-FPA330UAR
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEE-FPA330UAR |
| Description: | CAP ALUM 33UF 20% 10V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | FP |
| Ratings | AEC-Q200 |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Ripple Current @ Low Frequency | 104mA @ 120Hz |
| Ripple Current @ High Frequency | 160mA @ 100kHz |
| ESR (Equivalent Series Resistance) | 850mOhm @ 100kHz |
In Stock 3048 pcs
