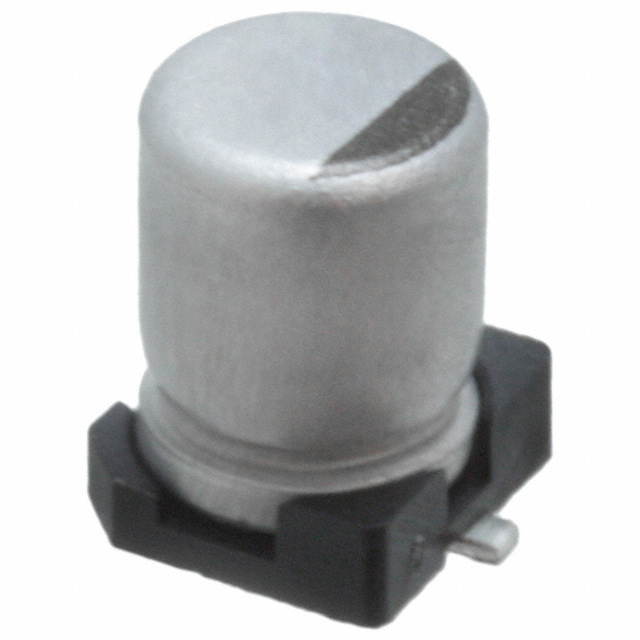

Image is for reference only , See Product Specifications
EEE-1EA101XP
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | EEE-1EA101XP |
| Description: | CAP ALUM 100UF 20% 25V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | S |
| Ratings | AEC-Q200 |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Ripple Current @ Low Frequency | 143mA @ 120Hz |
| Ripple Current @ High Frequency | 243.1mA @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 257939 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
