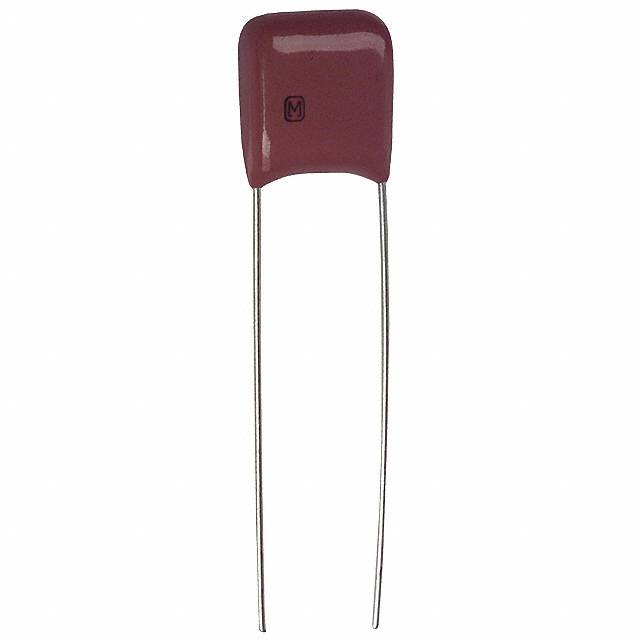

Image is for reference only , See Product Specifications
ECQ-U2A222ML
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Film Capacitors |
| Data Sheet: | ECQ-U2A222ML |
| Description: | CAP FILM 2200PF 20% 275VAC RAD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Film Capacitors |
| Series | ECQ-UL |
| Ratings | X2 |
| Features | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 2200pF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | EMI, RFI Suppression |
| Lead Spacing | 0.492" (12.50mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.591" L x 0.197" W (15.00mm x 5.00mm) |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 275V |
| Voltage Rating - DC | - |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Operating Temperature | -40°C ~ 100°C |
In Stock 24161 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.41 | $0.40 | $0.39 |
