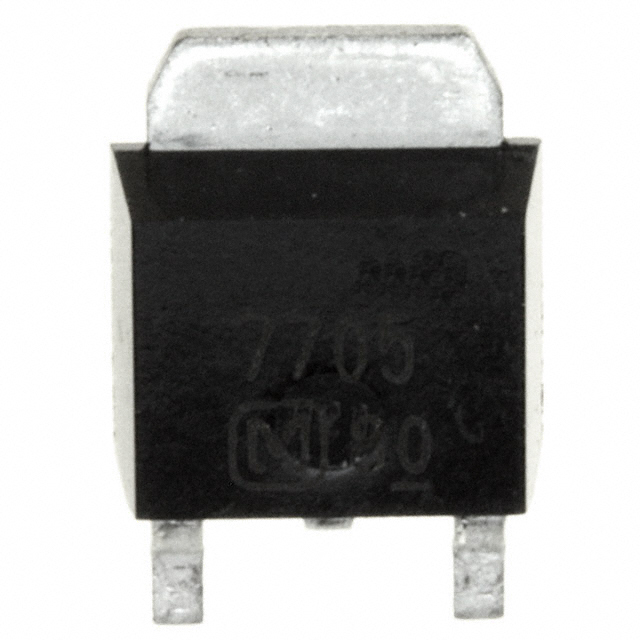

Image is for reference only , See Product Specifications
AN7709SP
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | PMIC - Voltage Regulators - Linear |
| Data Sheet: | AN7709SP |
| Description: | IC REG LINEAR 9V 1.2A SP3SUA |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | PMIC - Voltage Regulators - Linear |
| PSRR | 65dB (120Hz) |
| Series | - |
| Packaging | Bulk |
| Output Type | Fixed |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Base Part Number | AN7709 |
| Control Features | - |
| Current - Output | 1.2A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | 25°C ~ 125°C |
| Voltage - Input (Max) | 20V |
| Voltage Dropout (Max) | - |
| Voltage - Output (Max) | - |
| Supplier Device Package | SP-3SUA |
| Current - Quiescent (Iq) | 5mA |
| Voltage - Output (Min/Fixed) | 9V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
