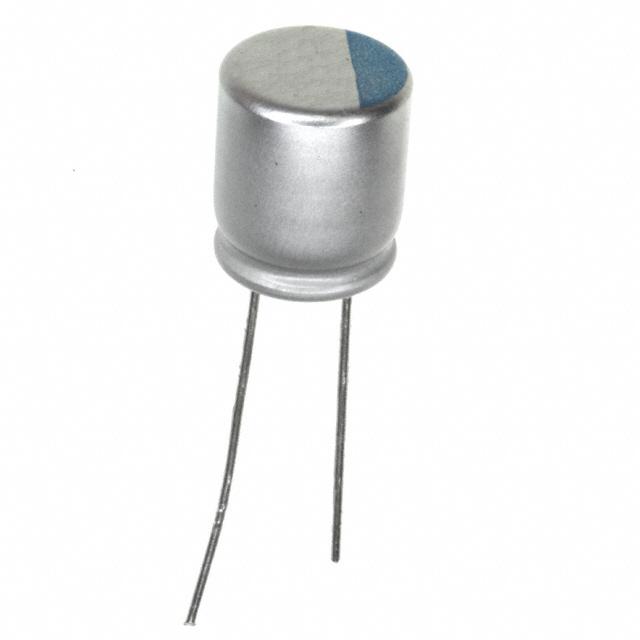

Image is for reference only , See Product Specifications
63SXV33M
| Manufacturers: | Panasonic Electronic Components |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | 63SXV33M |
| Description: | CAP ALUM POLY 33UF 20% 63V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Polymer |
| Series | OS-CON™, SXV |
| Ratings | - |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 63V |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Ripple Current @ Low Frequency | 147.5mA @ 120Hz |
| Ripple Current @ High Frequency | 2.95A @ 100kHz |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100kHz |
In Stock 3547 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
