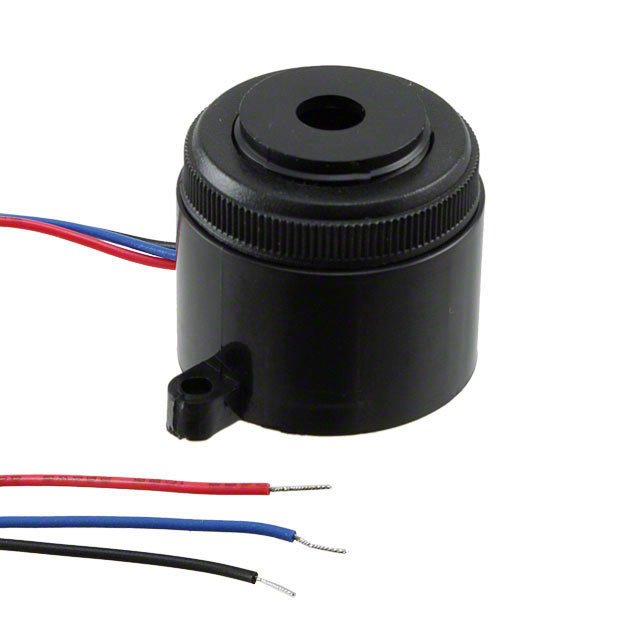

Image is for reference only , See Product Specifications
X-4035-P-FP32-R
| Manufacturers: | PUI Audio, Inc. |
|---|---|
| Product Category: | Alarms, Buzzers, and Sirens |
| Data Sheet: | X-4035-P-FP32-R |
| Description: | AUDIO PIEZO IND 3-32V PNL MNT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | PUI Audio, Inc. |
| Product Category | Alarms, Buzzers, and Sirens |
| Series | X |
| Ratings | - |
| Duration | 3 PPS |
| Approvals | - |
| Frequency | 2.8kHz |
| Packaging | Bulk |
| Input Type | DC |
| Technology | Piezo |
| Part Status | Active |
| Termination | Screw Terminal, Quick Connect Tab - 0.187" (4.75mm) |
| Mounting Type | Panel Mount |
| Port Location | Side |
| Voltage Range | 3 ~ 32V |
| Operating Mode | Pulse, Fast |
| Voltage - Rated | 32V |
| Current - Supply | 21mA |
| Driver Circuitry | Indicator, Internally Driven |
| Size / Dimension | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Operating Temperature | -30°C ~ 80°C |
| Sound Pressure Level (SPL) | 95dB @ 32V, 10cm |
In Stock 66 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $9.46 | $9.27 | $9.09 |
