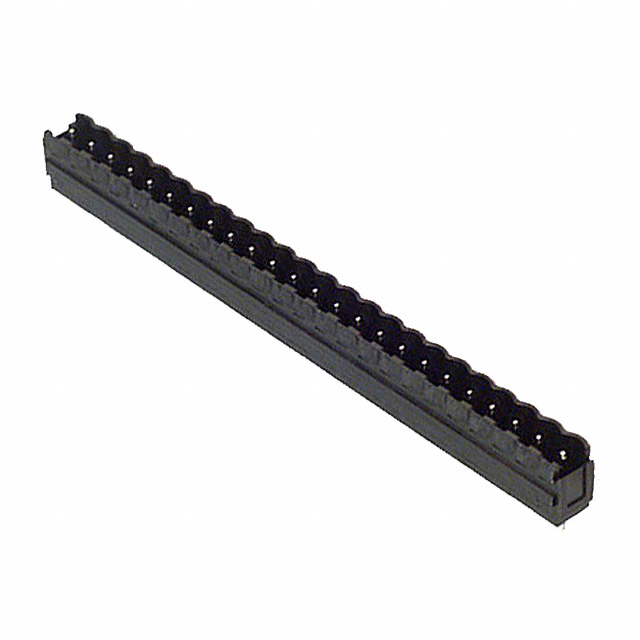

Image is for reference only , See Product Specifications
OSTVR235151
| Manufacturers: | On-Shore Technology, Inc. |
|---|---|
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Data Sheet: | OSTVR235151 |
| Description: | TERM BLOCK PLUG 23POS STR 5.08MM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | OSTVR |
| Features | - |
| Packaging | Bulk |
| Screw Size | M2 |
| Part Status | Active |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | 0.23 Nm (2.0 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Brass |
| Number of Levels | 1 |
| Insulation Height | 0.437" (11.10mm) |
| Termination Style | Screw |
| Wire Strip Length | 7-8mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Dielectric Material | Thermoplastic |
| Number of Positions | 23 |
| Positions Per Level | 23 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 115°C |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.63 | $5.52 | $5.41 |
