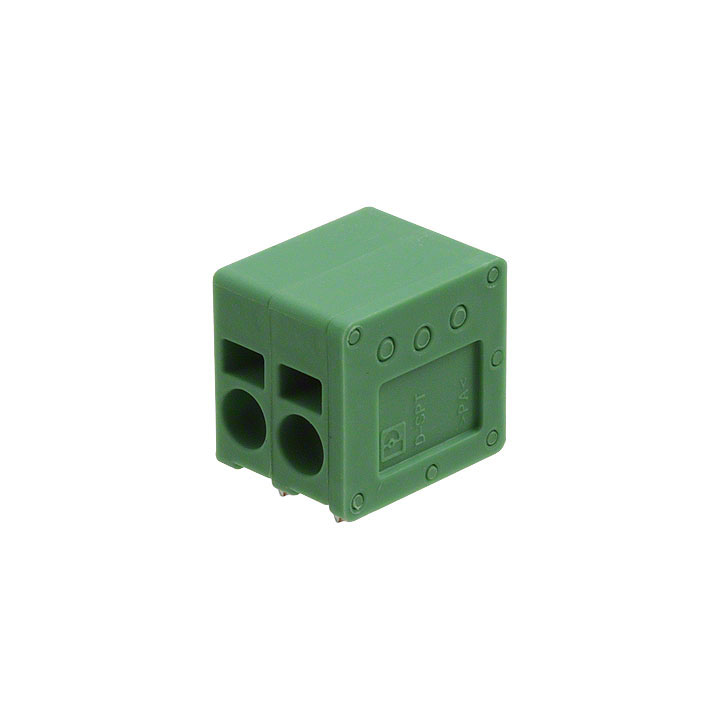

Image is for reference only , See Product Specifications
OSTVI020152
| Manufacturers: | On-Shore Technology, Inc. |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | OSTVI020152 |
| Description: | TERM BLK 2POS SIDE ENTRY 5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | OSTVI |
| Current | 16A |
| Voltage | 300V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 12-28 AWG |
| Part Status | Active |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Number of Levels | 1 |
| Wire Termination | Screw - Rising Cage Clamp |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Thermoplastic |
| Positions Per Level | 2 |
| Operating Temperature | -30°C ~ 105°C |
| Clamp Material - Plating | Brass |
| Screw Material - Plating | Steel - Zinc Plated |
| Contact Material - Plating | Brass |
In Stock 1044 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.23 | $1.21 | $1.18 |
