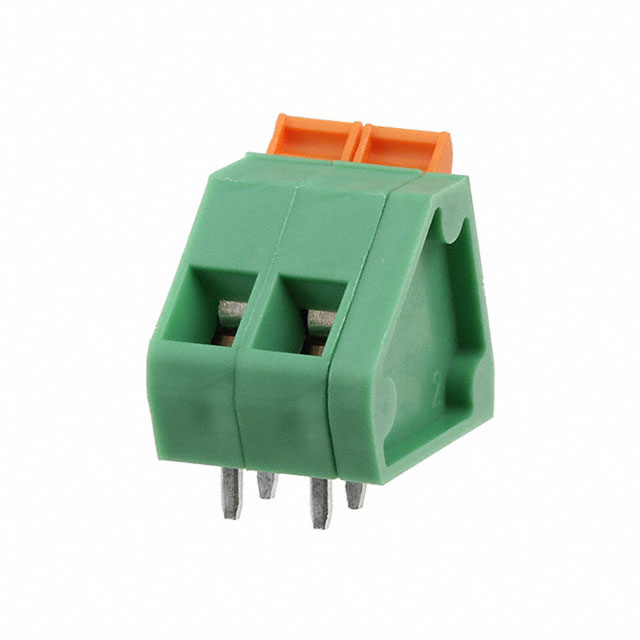

Image is for reference only , See Product Specifications
ED3101/2-WD
| Manufacturers: | On-Shore Technology, Inc. |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | ED3101/2-WD |
| Description: | TERM BLK 2POS SIDE ENTRY 5MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Gray, Slate |
| Pitch | 0.197" (5.00mm) |
| Series | ED3101/WD |
| Current | 16A |
| Voltage | 300V |
| Features | Interlocking (Side), Lever Actuated |
| Packaging | Bulk |
| Wire Gauge | 14-28 AWG |
| Part Status | Active |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Number of Levels | 1 |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Polyamide (PA), Nylon |
| Positions Per Level | 2 |
| Operating Temperature | -30°C ~ 105°C |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | - |
| Contact Material - Plating | - |
In Stock 517 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.35 | $1.32 | $1.30 |
