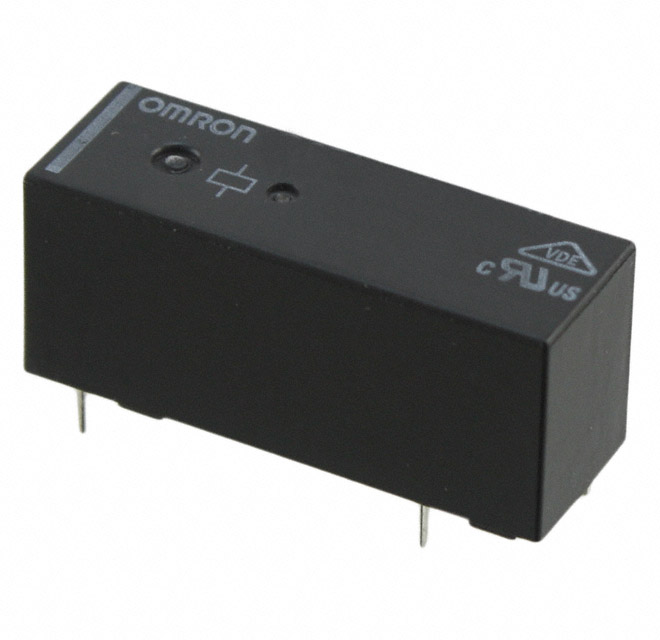

Image is for reference only , See Product Specifications
G8P-1A4P-VD DC12
| Manufacturers: | Omron Electronics Inc-EMC Div |
|---|---|
| Product Category: | Power Relays, Over 2 Amps |
| Data Sheet: | G8P-1A4P-VD DC12 |
| Description: | RELAY GEN PURPOSE SPST 30A 12V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Product Category | Power Relays, Over 2 Amps |
| Series | G8P |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Obsolete |
| Seal Rating | Sealed - Fully |
| Coil Current | 77.0mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15ms |
| Release Time | 10ms |
| Mounting Type | Through Hole |
| Coil Insulation | Class F |
| Coil Resistance | 155 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 250VAC, 28VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -55°C ~ 105°C |
| Contact Rating (Current) | 30A |
