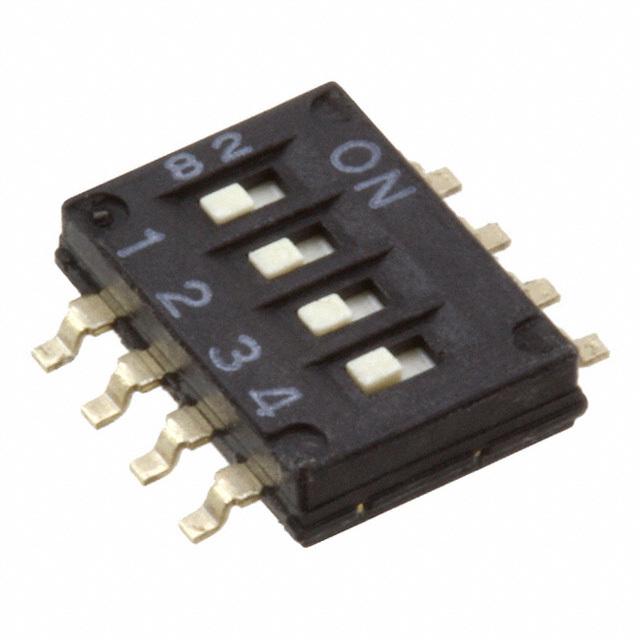

Image is for reference only , See Product Specifications
A6HF-4102-PM
| Manufacturers: | Omron Electronics Inc-EMC Div |
|---|---|
| Product Category: | DIP Switches |
| Data Sheet: | A6HF-4102-PM |
| Description: | SWITCH SLIDE DIP SPST 25MA 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Product Category | DIP Switches |
| Pitch | 0.050" (1.27mm), Half |
| Length | 0.244" (6.20mm) |
| Series | A6HF |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Digi-Reel® |
| Part Status | Active |
| Actuator Type | Slide (Standard) |
| Body Material | - |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | - |
| Contact Material | - |
| Termination Style | Gull Wing |
| Height Above Board | 0.091" (2.30mm) |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -30°C ~ 85°C |
In Stock 480 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
