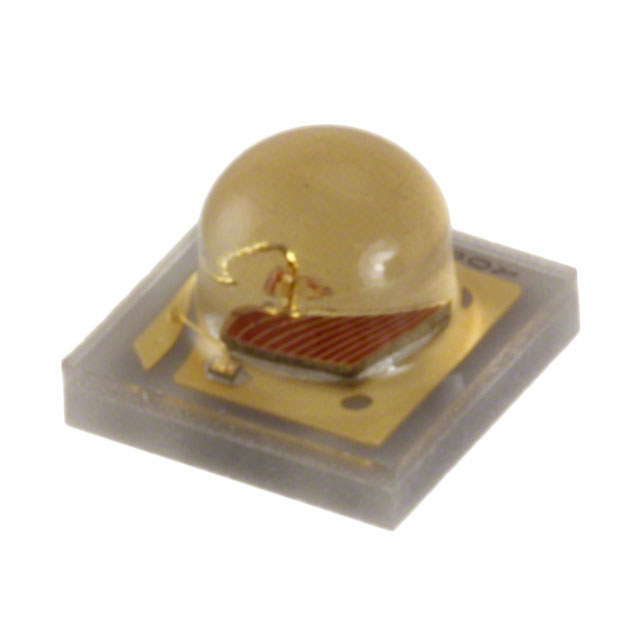

Image is for reference only , See Product Specifications
LR CPDP-JSJU-1-0-350-R18
| Manufacturers: | OSRAM Opto Semiconductors, Inc. |
|---|---|
| Product Category: | LED Lighting - Color |
| Data Sheet: | LR CPDP-JSJU-1-0-350-R18 |
| Description: | LED OSLON 625NM RED SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | OSRAM Opto Semiconductors, Inc. |
| Product Category | LED Lighting - Color |
| Color | Red |
| Series | OSLON® SSL 150 |
| Packaging | Digi-Reel® |
| Wavelength | 631nm (620nm ~ 632nm) |
| Part Status | Discontinued at Digi-Key |
| Current - Max | 1A |
| Mounting Type | Surface Mount |
| Viewing Angle | 150° |
| Current - Test | 350mA |
| Package / Case | 1212 (3030 Metric) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Temperature - Test | 25°C |
| Height - Seated (Max) | 0.062" (1.58mm) |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 85 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Thermal Resistance of Package | 9.6°C/W |
| Flux @ Current/Temperature - Test | 64lm (56lm ~ 71lm) |
