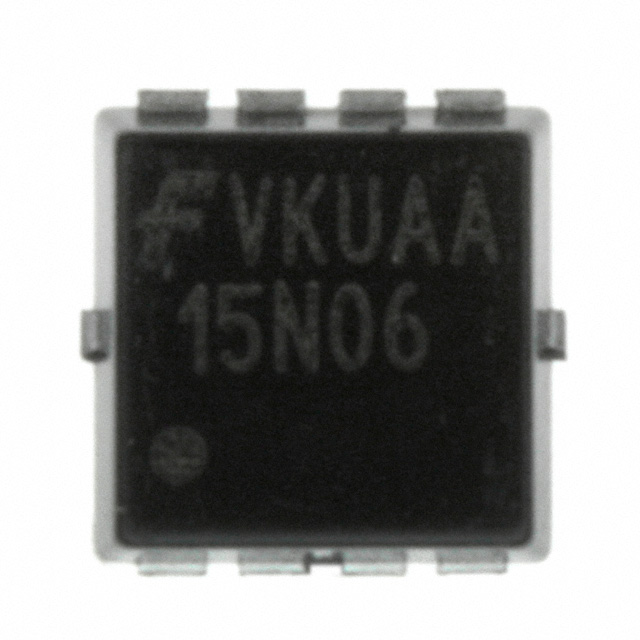

Image is for reference only , See Product Specifications
NTMFS4852NT3G
| Manufacturers: | ON Semiconductor |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | NTMFS4852NT3G |
| Description: | MOSFET N-CH 30V 16A SO8FL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.1mOhm @ 30A, 10V |
| Power Dissipation (Max) | 900mW (Ta), 86.2W (Tc) |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Gate Charge (Qg) (Max) @ Vgs | 71.3nC @ 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4970pF @ 12V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 155A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.66 | $0.65 | $0.63 |
