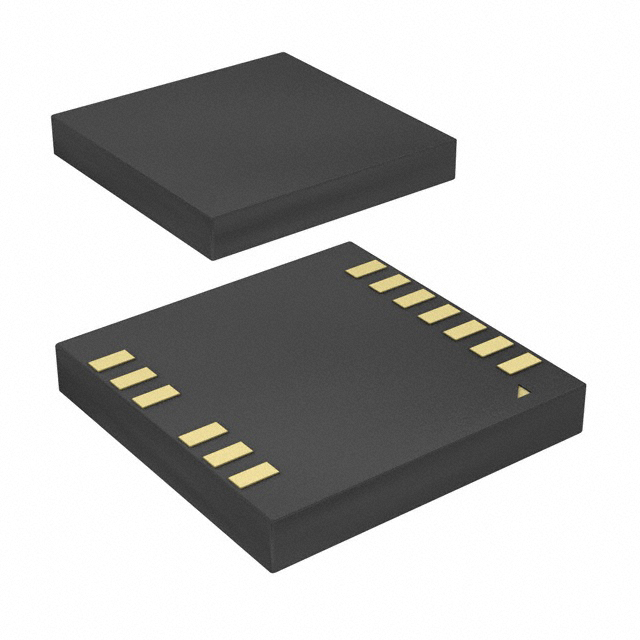

Image is for reference only , See Product Specifications
NCP5109AMNTWG
| Manufacturers: | ON Semiconductor |
|---|---|
| Product Category: | PMIC - Gate Drivers |
| Data Sheet: | NCP5109AMNTWG |
| Description: | IC DRIVER HI/LO 600V 10DFN |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | PMIC - Gate Drivers |
| Series | - |
| Gate Type | IGBT, N-Channel MOSFET |
| Packaging | Cut Tape (CT) |
| Input Type | Non-Inverting |
| Part Status | Discontinued at Digi-Key |
| Channel Type | Independent |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Voltage - Supply | 10V ~ 20V |
| Number of Drivers | 2 |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 85ns, 35ns |
| Supplier Device Package | 10-DFN (3x3) |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| High Side Voltage - Max (Bootstrap) | 200V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
In Stock 2876 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.16 | $1.14 | $1.11 |
Request Quote
