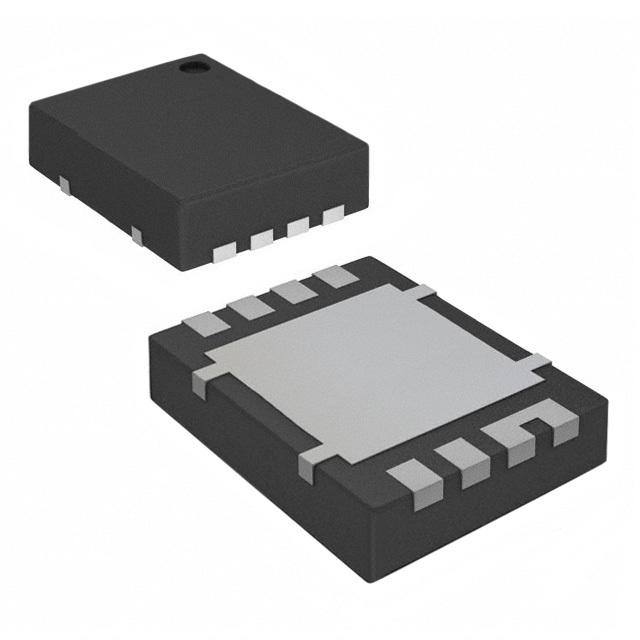

Image is for reference only , See Product Specifications
FDPC8016S
| Manufacturers: | ON Semiconductor |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Data Sheet: | FDPC8016S |
| Description: | MOSFET 2N-CH 25V 8PWRCLIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Arrays |
| Series | PowerTrench® |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| Packaging | Cut Tape (CT) |
| FET Feature | Logic Level Gate |
| Part Status | Active |
| Power - Max | 2.1W, 2.3W |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 20A, 10V |
| Supplier Device Package | Power Clip 56 |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V |
| Drain to Source Voltage (Vdss) | 25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2375pF @ 13V |
| Current - Continuous Drain (Id) @ 25°C | 20A, 35A |
In Stock 2700 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.87 | $1.83 | $1.80 |
