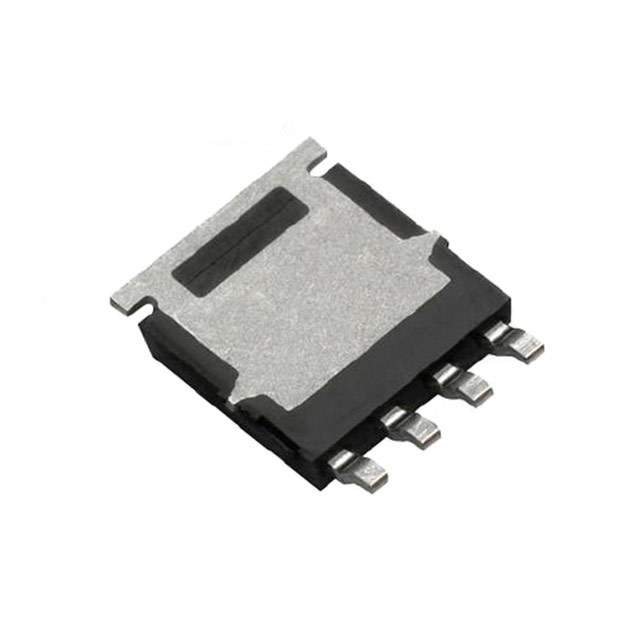

Image is for reference only , See Product Specifications
FDMS0310AS
| Manufacturers: | ON Semiconductor |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | FDMS0310AS |
| Description: | MOSFET N-CH 30V 19A PT8 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | PowerTrench®, SyncFET™ |
| FET Type | N-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 4.3mOhm @ 19A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 41W (Tc) |
| Supplier Device Package | 8-PQFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 37nC @ 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2280pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Ta), 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
In Stock 2990 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
