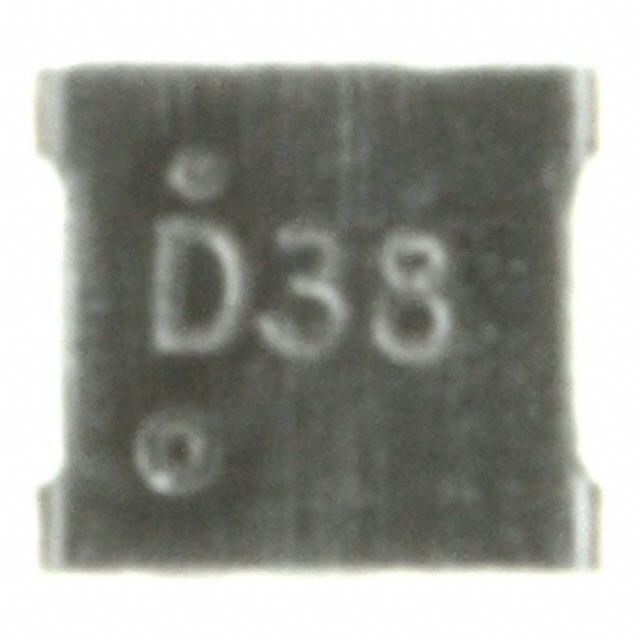

Image is for reference only , See Product Specifications
FDFC2P100
| Manufacturers: | ON Semiconductor |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | FDFC2P100 |
| Description: | MOSFET P-CH 20V 3A SSOT-6 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | PowerTrench® |
| FET Type | P-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Schottky Diode (Isolated) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 1.5W (Ta) |
| Supplier Device Package | SuperSOT™-6 |
| Gate Charge (Qg) (Max) @ Vgs | 4.7nC @ 10V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 445pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
