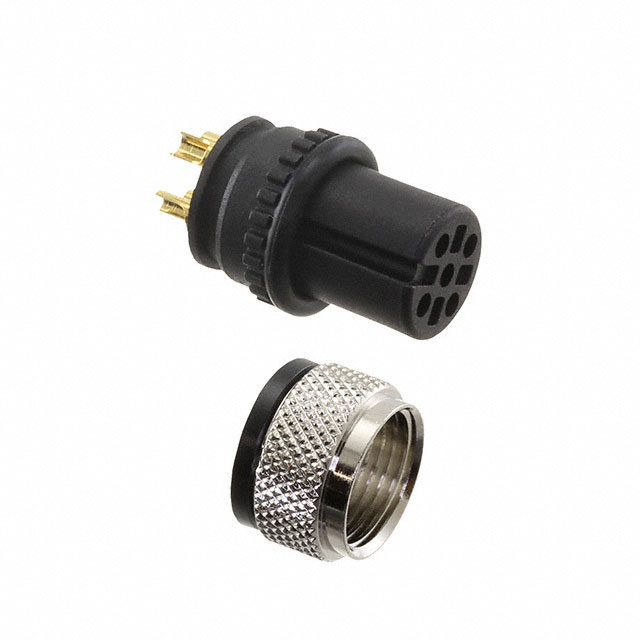

Image is for reference only , See Product Specifications
858VA05-103RLU4
| Manufacturers: | NorComp Inc. |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | 858VA05-103RLU4 |
| Description: | CONN RCPT MALE 5POS GOLD SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NorComp Inc. |
| Product Category | Circular Connectors |
| Color | Black, Silver |
| Series | M12 |
| Features | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Orientation | A |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial, Medical |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 60V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
In Stock 99 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $12.72 | $12.47 | $12.22 |
Request Quote
