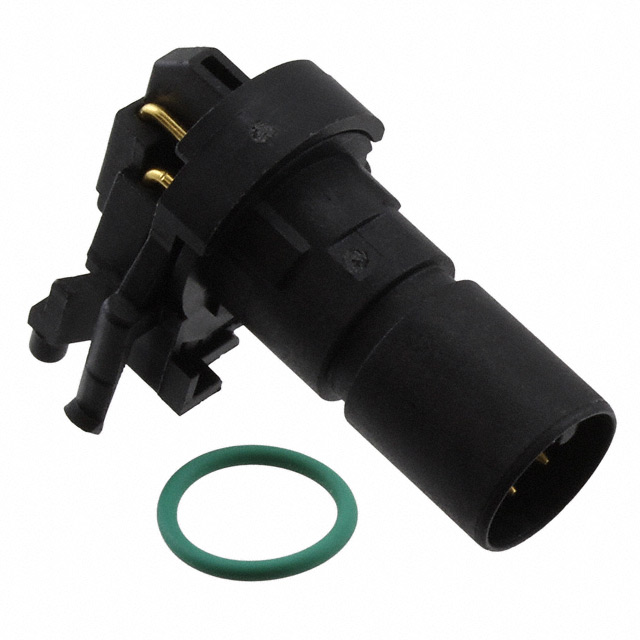

Image is for reference only , See Product Specifications
820B002-173L401
| Manufacturers: | NorComp Inc. |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | 820B002-173L401 |
| Description: | CONN PLUG MALE 2POS SOLDER CUP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NorComp Inc. |
| Product Category | Circular Connectors |
| Color | Black, Silver |
| Series | QUIK-LOQ™ 820B |
| Features | Backshell, Strain Relief |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Industrial, Instrumentation, Medical, Testing Equipment & Measurement, Telecommunications |
| Shell Finish | Nickel |
| Cable Opening | 0.130" ~ 0.165" (3.30mm ~ 4.20mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Push-Pull |
| Shell Material | Brass |
| Voltage Rating | 430V |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Ingress Protection | IP50 - Dust Protected |
| Number of Positions | 2 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Brass, Chrome |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | 7.00µin (0.178µm) |
In Stock 5 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $29.10 | $28.52 | $27.95 |
