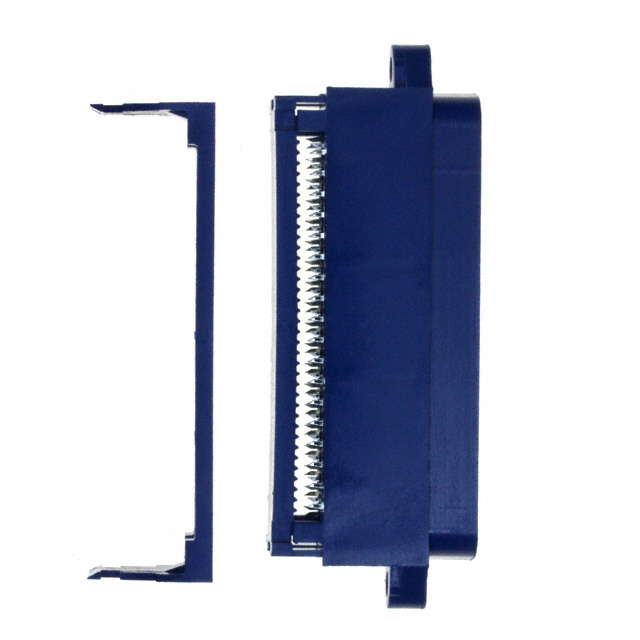

Image is for reference only , See Product Specifications
680M3W3103L201
| Manufacturers: | NorComp Inc. |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 680M3W3103L201 |
| Description: | CONN D-SUB PLUG 3POS PNL MNT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NorComp Inc. |
| Product Category | D-Sub Connectors |
| Color | Black |
| Series | Power-D 680M |
| Features | Grounding Indents |
| Packaging | Tray |
| Wire Gauge | - |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Power |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 1 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub, Combo |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 3 (Power) |
| Current Rating (Amps) | 20A |
| Operating Temperature | -55°C ~ 155°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
In Stock 1387 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $8.19 | $8.03 | $7.87 |
