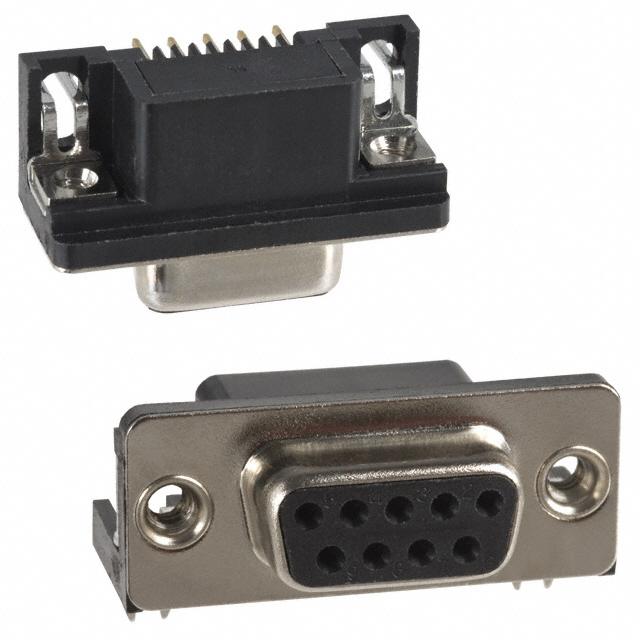

Image is for reference only , See Product Specifications
182-009-212-481
| Manufacturers: | NorComp Inc. |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 182-009-212-481 |
| Description: | CONN D-SUB RCPT 9POS R/A SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NorComp Inc. |
| Product Category | D-Sub Connectors |
| Color | Black |
| Series | 182 |
| Features | - |
| Packaging | - |
| Wire Gauge | - |
| Part Status | Obsolete |
| Termination | Solder |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Sub |
| Contact Material | - |
| Ingress Protection | - |
| Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
