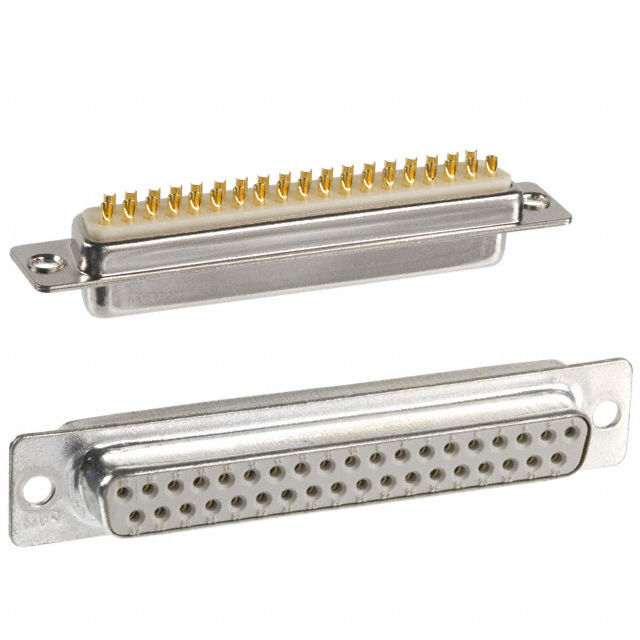

Image is for reference only , See Product Specifications
172-025-201-011
| Manufacturers: | NorComp Inc. |
|---|---|
| Product Category: | D-Sub Connectors |
| Data Sheet: | 172-025-201-011 |
| Description: | CONN D-SUB RCPT 25POS PNL MNT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NorComp Inc. |
| Product Category | D-Sub Connectors |
| Color | - |
| Series | 172 |
| Features | - |
| Packaging | - |
| Wire Gauge | 20-28 AWG |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Cable Side (4-40) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | - |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 25 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -50°C ~ 100°C |
| Shell Material, Finish | Steel, Yellow Chromate Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
