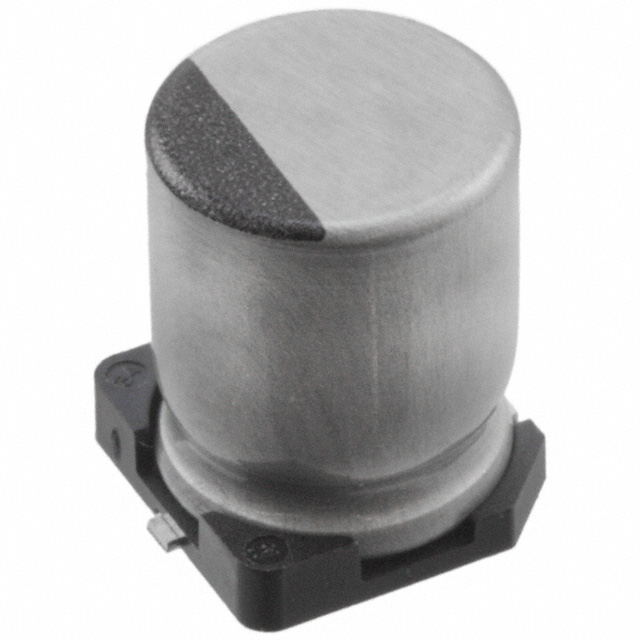

Image is for reference only , See Product Specifications
UUB1H470MNL1GS
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UUB1H470MNL1GS |
| Description: | CAP ALUM 47UF 20% 50V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UUB |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 47µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 58mA @ 120Hz |
| Ripple Current @ High Frequency | 87mA @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 2061 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.78 | $0.76 | $0.75 |
