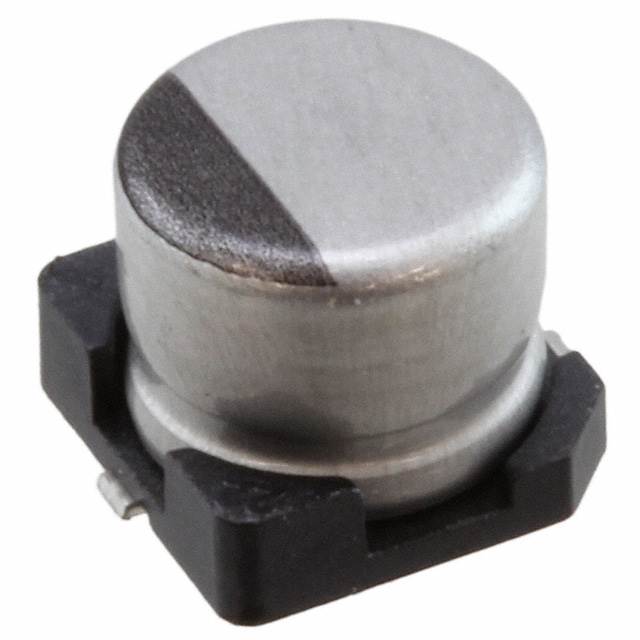

Image is for reference only , See Product Specifications
UUA1E330MCL1GS
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UUA1E330MCL1GS |
| Description: | CAP ALUM 33UF 20% 25V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UUA |
| Ratings | - |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 33µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 25V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Ripple Current @ Low Frequency | 50mA @ 120Hz |
| Ripple Current @ High Frequency | 75mA @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 2928 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
Request Quote
