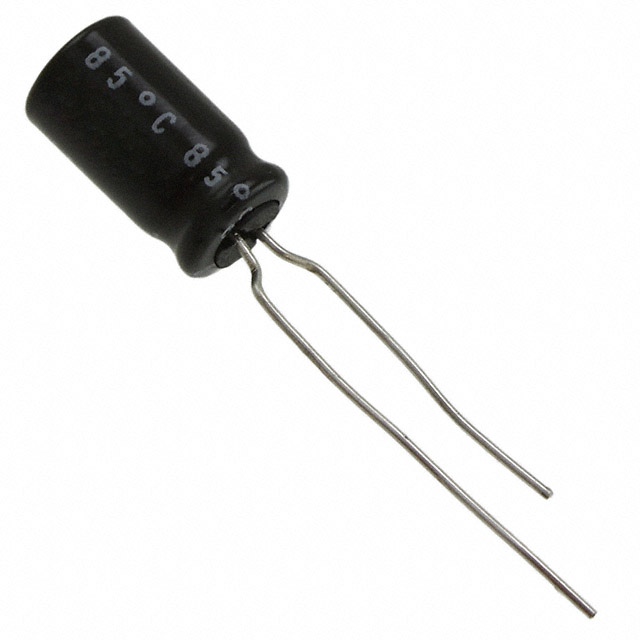

Image is for reference only , See Product Specifications
UST1C100MDD1TP
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UST1C100MDD1TP |
| Description: | CAP ALUM 10UF 20% 16V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UST |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 10µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.059" (1.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 29mA @ 120Hz |
| Ripple Current @ High Frequency | 43.5mA @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 8391 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.25 | $0.25 | $0.24 |
