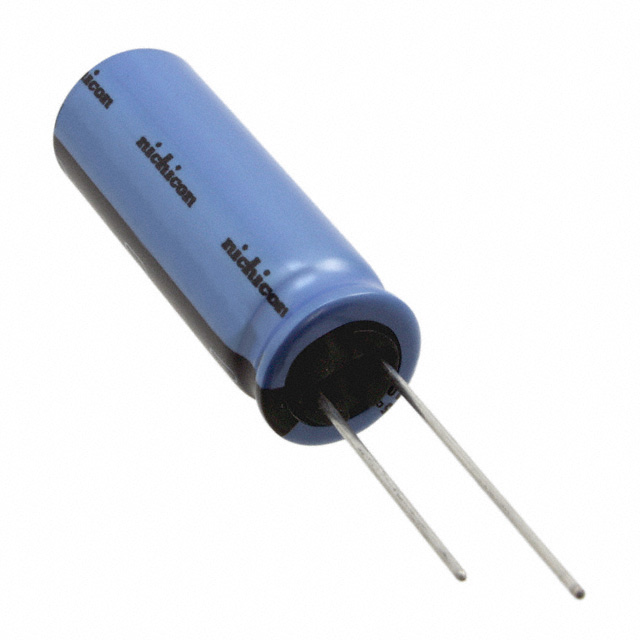

Image is for reference only , See Product Specifications
UPX1A332MHD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UPX1A332MHD |
| Description: | CAP ALUM 3300UF 20% 10V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UPX |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 3300µF |
| Part Status | Not For New Designs |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.512A @ 120Hz |
| Ripple Current @ High Frequency | 2.016A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 125 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.22 | $2.18 | $2.13 |
