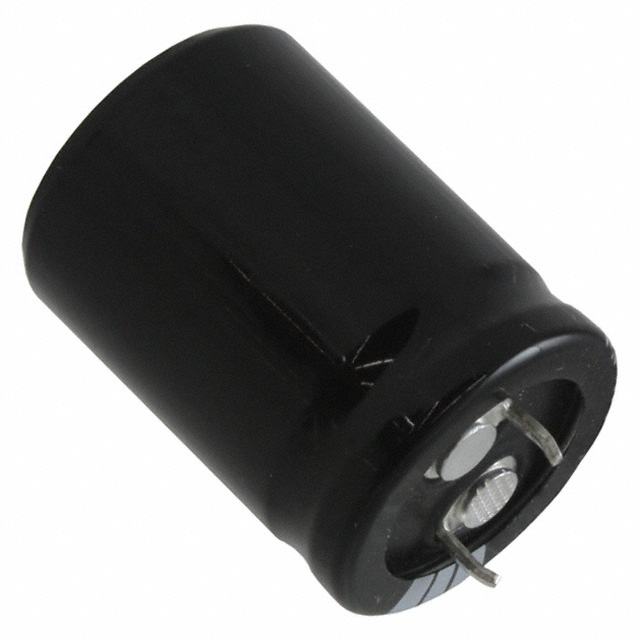

Image is for reference only , See Product Specifications
UPT2P221MHD6
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UPT2P221MHD6 |
| Description: | CAP ALUM 220UF 20% 220V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UPT |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 220µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 220V |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Operating Temperature | -25°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 770mA @ 120Hz |
| Ripple Current @ High Frequency | 1.232A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 16 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.84 | $2.78 | $2.73 |
