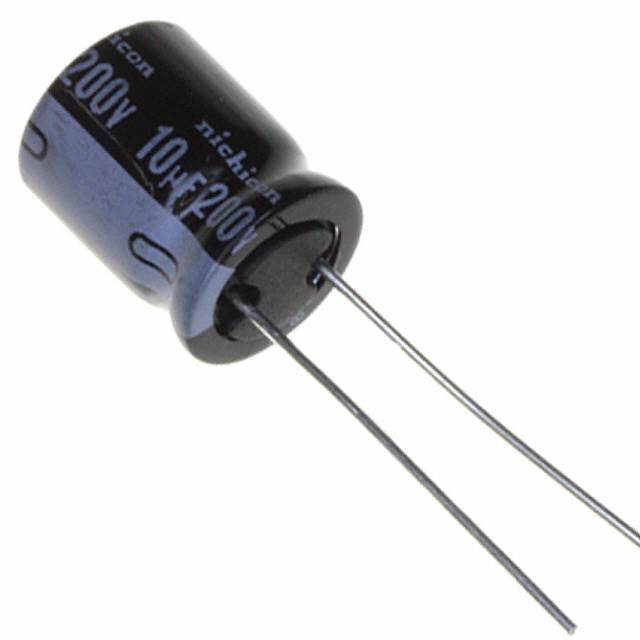

Image is for reference only , See Product Specifications
UPS2D100MPD1TD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UPS2D100MPD1TD |
| Description: | CAP ALUM 10UF 20% 200V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UPS |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 10µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 200V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 80mA @ 120Hz |
| Ripple Current @ High Frequency | 128mA @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 2411 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.49 | $0.48 | $0.47 |
