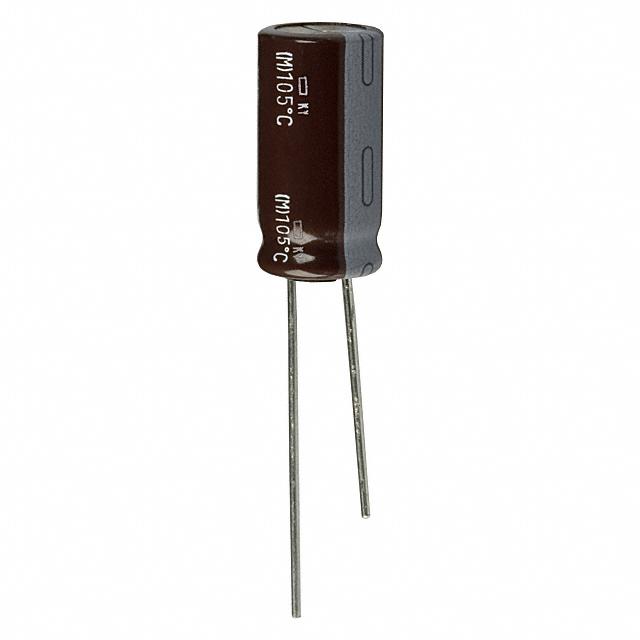

Image is for reference only , See Product Specifications
UHE1J121MPD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UHE1J121MPD |
| Description: | CAP ALUM 120UF 20% 63V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UHE |
| Ratings | - |
| Impedance | 330 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 120µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 63V |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 285.6mA @ 120Hz |
| Ripple Current @ High Frequency | 408mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 1517 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.57 | $0.56 | $0.55 |
Request Quote
