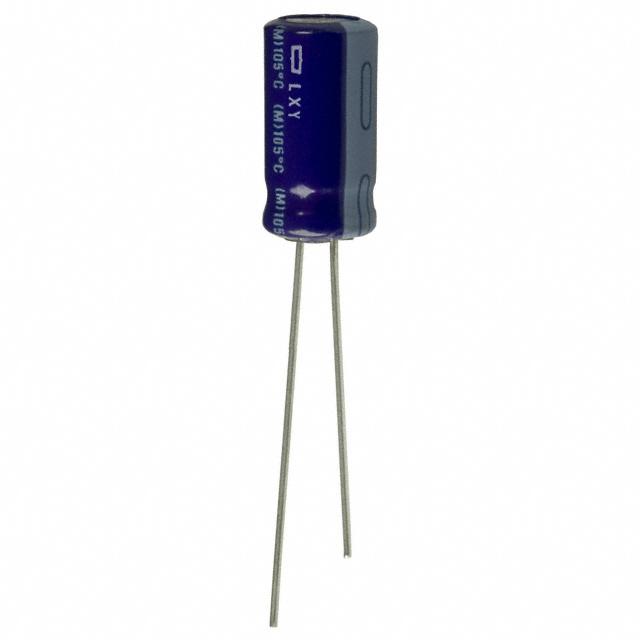

Image is for reference only , See Product Specifications
UHD1A102MPD
| Manufacturers: | Nichicon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | UHD1A102MPD |
| Description: | CAP ALUM 1000UF 20% 10V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nichicon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | UHD |
| Ratings | - |
| Impedance | 41 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 1000µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 937.5mA @ 120Hz |
| Ripple Current @ High Frequency | 1.25A @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 184 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.46 | $0.45 | $0.44 |
